Made in Russia · Modern industrial technologies
Compact plantsfor ethanol production
Ethanol plants with capacities of 500, 1000, 1500 and 3000 liters per day. Modern compact design, automatic process monitoring and technical process support.
01Mash distillation02RectificationNominal output500 L/day
Minimum ceiling height≥ 4 m
Production economics
Control the costs of ethanol production
Choose feedstock and an energy source based on local prices and the intended use of the product. We compare the cost of purchasing ethanol with the cost of in-house production, accounting for the full investment and operating expenses.
B
Produce at your own site
Your feedstock
Your own plant
Your ethanol
Feedstock + energy + operation
You control the starting conditions
Feedstock costEnergy sourcePlant utilizationHeat reuseStillage use
500 → 3000 L/day
Produce ethanol for your own facility
Complement purchases with your own output and plan your facility's ethanol supply. We select capacity to suit the required volume and operating schedule.
↻
Reuse heat from production
With a self-contained cooling package, the heat removed can be used to heat production premises and preheat water for the next mash. The benefit depends on the selected system design and the site's demand for heat.
↗ Ethanol
↘ Grain stillage
↘ Grain stillage
Use grain stillage as animal feed
Grain stillage can be used as livestock feed. Its practical value depends on composition, processing, storage and the distance to the livestock farm.
Get a calculation tailored to your site's conditions
Purchase price → cost of your own ethanol → annual cash benefit → estimated payback. We account for feedstock, actual yield, utilization, personnel, maintenance, logistics and stillage handling.
Why our equipment
Modern industrial technologies in a compact design
We select the layout for your premises, utilities and planned output. Automation monitors the process, cloud-based statistics provide access to parameters and operating history, and additional units can be agreed as production develops.
1
Mash distillation
The continuous mash column works together with a column for separating head impurities, known as an epuration column. It produces crude spirit with the heads removed.
Compact equipment for your site
We account for ceiling height, utility connections, auxiliary vessels and maintenance access. The placement of main and auxiliary units is agreed for your site's conditions.
Ceiling height
Utilities
Maintenance access
Prepared assemblies for transport and installation
The main SPZ 500 assemblies are mounted on frames. Two prepared process modules arrive on site; individual sections can be dismantled for transport. Assembly and connections follow the manufacturer's documentation.
Factory preparation
→Transport of major assemblies
→Assembly using the documentation
Options for adding equipment
Additional vessels, feedstock preparation equipment and cooling can be agreed for future production needs. Compatibility and the extent of additions are defined for the specific project.
Vessels
Feedstock preparation
Cooling
Process diagram of the 500 L/day ethanol plant
Mash columnMash distillation
→Epuration columnRemoval of head impurities↓ Head impurities
→Crude spirit with heads removedIntermediate product
→RectificationSecond stage
→Target productEthanol collection
Removing head impurities in advance reduces their collection time during rectification and leaves more time to collect the target product during the day

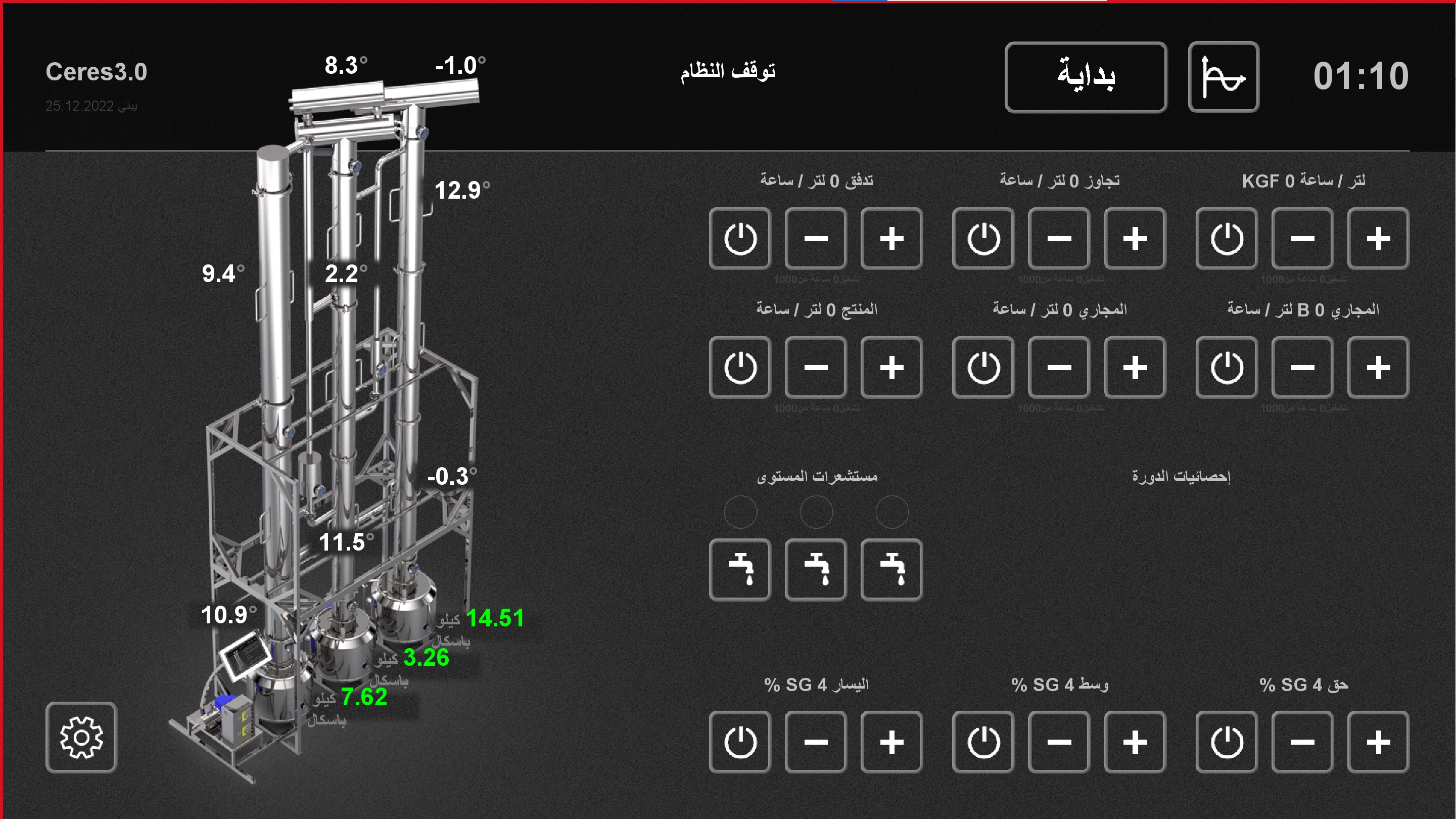

Actual Ceres 3.0 interface. Control example; the version and languages for the selected model are agreed separately.
The operator follows the process instructions
New interface · RU / EN / DE / FR / AR
Automatic control of key operations
Automation controls heating, operating parameters and product collection according to the selected model's algorithms. The operator follows the process and carries out tasks according to the process instructions.
Operating parameters in view
Temperatures, actuator status and process events help assess equipment operation and investigate deviations. The parameters displayed depend on the configuration.
Operating history for diagnostics
Parameter charts and a log of events and operator actions help reconstruct the process and identify when a deviation occurred. Available data and history retention are agreed for the selected control system.
Parameters and operating history in cloud statistics
Parameters and operating history are available through cloud-based statistics. The data helps monitor production, investigate deviations and receive remote technical assistance.
Equipment
Parameters and events
Cloud-based statistics
Analysis and support
We define the statistics provided, data access and network connection when selecting the control system. Monitoring parameters does not replace the on-site operator.
An energy source to match your resources
We select an electric or gas-fired heat supply based on available power and operating costs. A suitable steam generator is selected for natural gas or LPG. Pellets and coal are considered as alternative or backup options.
Electricity
Suitable steam generator
Steam
Ethanol production
Energy efficiency: energy use per litre and useful heat recovery. We compare options using your site's operating mode and utilisation.
Self-contained cooling and heat recovery
Ethanol production
↻
Workshop heating + preheating mash water
Lower costs for water, wastewater disposal and additional heating
The cooling package is agreed separately. We account for its electricity consumption and the site's actual demand for heat.
Return condensate to the steam generator
In the version with indirect steam heating, steam transfers heat through a heat exchanger. The resulting condensate returns to the steam generator through a separate circuit.
Steam generator
Heat exchanger
Condensate
Return to the steam generator
Returning already heated water reduces the need for water treatment and reheating. We calculate the actual benefit for the heat supply scheme and operating conditions.
The steam and condensate circuit and the cooling circuit perform different tasks. Indirect heating, the return scheme and water requirements depend on the selected version.
Protection at three levels
Mechanical components, electrical protection and control algorithms work together. The specific devices and responses to deviations are defined by the project and described in the documentation.
Mechanical protection
Pressure and temperature monitoring, specified safety valves and connection checks help monitor the condition of process equipment.
Electrical protection
Earthing, protective devices and selected electrical components form part of the connection scheme. Site power supply and protection requirements are provided with the documentation.
Protective algorithms
The system logs specified errors, notifies the operator and performs the programmed response: limiting operation or stopping the relevant units. Responses depend on the sensors and algorithms of the selected version.
Select a protection scenario
Deviation
Message and log
Action under the procedure
Temperature or cooling deviation
If monitored parameters deviate, the operator receives a system message. The cause is checked using readings, the event log and operating procedures; the equipment response follows the specified protective scenario.
Automation helps detect and respond to the specified deviations. Correct connections, maintenance and the actions of a trained operator remain essential operating requirements.
Model range
Choose capacity and a version to suit your needs
Four ethanol plants, from 500 to 3000 litres per day. Compare operating modes and room requirements to choose a plant for your required output.
Distillery 500
500litres
per day
per day
Easy for new operatorsTwo clear process stages
- Operating mode
- Batch rectification
- Room ceiling height
- ≥ 4 m
Distillery 1000
1000litres
per day
per day
Three-column system
- Operating mode
- Continuous operation
- Room ceiling height
- ≥ 5,5 m
Distillery 1500
1500litres
per day
per day
Three-column system
- Operating mode
- Continuous operation
- Room ceiling height
- ≥ 6,5 m
Distillery 3000
3000litres
per day
per day
Three-column system
- Operating mode
- Continuous operation
- Room ceiling height
- ≥ 8,5 m
The illustrations show the design principle. We agree on the final layout of each model separately.
Automatic control
Functions depend on model and configuration
Cloud statistics
Plant parameters and operating history
Process support
Documentation, commissioning and consultation
Installation
We account for conditions at your site
Compare the minimum room heights. We agree on the layout with utilities, auxiliary tanks and maintenance access taken into account.
The diagram shows room requirements, rather than the height of the equipment itself
500 L/day
1000 L/day
1500 L/day
3000 L/day
We help you choose a model and configuration
We account for required output, feedstock, available energy and premises
Quality and support
Lux and Alpha spirit grades from a compact plant
Producing the selected grade requires suitable feedstock, proper mash preparation and adherence to production conditions. Lux uses grain feedstock; Alpha uses wheat, rye or a mixture of both.
Suitable feedstock
Properly prepared mash
Process conditions
Product specifications
GOST “Lux”
GOST “Alpha”
Wheat, rye or a mixture of both
Grades under GOST 5962-2013 can be obtained with suitable feedstock and compliance with the full set of process requirements.
GOST 5962-2013 ↗Equipment checks before shipment
We assemble the plant at our site and connect the control system. In the buyer’s presence, we check the controls, sensors and pumps, verify that the equipment is complete, and inspect assembly quality. We demonstrate how to assemble, start and maintain the equipment.
Plant assembly
Assembled plant with the control system connected
Component checks
Controls · sensors · pumps
Practical guidance
Assembly · start-up · maintenance
Packing and shipment
Dismantling with the buyer present
How we check and prepare the equipment for shipment+
See the assembled plant
We assemble the equipment at our site and connect the control system. We show you the integrity of the structure and the quality of the components and assembly, and check the configuration against the scope of supply.
Checking controls, sensors and pumps
We check the controls, sensors and pumps in the buyer’s presence. We show the main components and connections and explain their functions.
How to assemble, start and maintain the plant
We walk you through the dismantling and assembly sequence and the procedures for starting and maintaining the plant. We show the connections and components the operator will work with.
Dismantling, packing and shipment
In the buyer’s presence, we dismantle the plant for transport, pack it and ship the equipment. We show how the dismantled sections are connected during subsequent assembly at the customer’s site.
The customer sees the assembled equipment and its preparation for transport, and receives practical guidance on assembly, start-up and maintenance.
We select feedstock and technology for the intended ethanol use
Starchy feedstock preparation → saccharification → fermentation
Ethanol
For each feedstock, we define preparation, the processing cycle and target ethanol specifications. Suitability and expected yield are confirmed in the process sheet.
We select the process for food-grade or industrial ethanol applications. Lux and Alpha grades require suitable grain feedstock and compliance with process requirements.
You receive the equipment and the process for operating it
Operating documentation
Documentation for assembly, connection, operation and maintenance of the selected model.
Process sheets
Mash preparation and processing conditions for the selected feedstock, tailored to food or technical applications of ethanol.
Production line training
Training in mash preparation, operator tasks and production line operation under the agreed programme. We help prepare for remotely guided commissioning.
Remote consultations
Help with commissioning, operation, settings and diagnostics. We review operating parameters and history, including cloud-based statistics.
Russia · CIS · Middle East · Africa
Countries where we work with customers include the UAE, Saudi Arabia and Syria.
Production and the technical team are based in Russia. This provides prompt logistics, direct communication with the manufacturer and support for customers in Russia and abroad.
Commissioning and support are primarily provided remotely. The customer organises on-site work according to technical requirements. A specialist visit is possible if needed and if the team is available, for a separately agreed fee and on separately agreed dates.
Your next step
Get a proposal for your production
Specify the intended ethanol use, required volume and contact details. We will add your selected model, feedstock and steam source to the request. We will prepare a proposal with the configuration, site requirements and supply price.
Configuration / placement / resource requirements / price / economics / support
Message us
Contact and support: Russian and English
What to know before choosing a plant
What is included in the supply, and what is handled on site?+
The equipment, documentation and support provided are defined in the specification and proposal. The customer organises installation work and site preparation. Commissioning is primarily guided remotely; a possible specialist visit is agreed separately according to need, team availability, fee and timing.
Can the plant operate without a continuous cooling water supply?+
Yes, with a separately agreed self-contained cooling package. A continuous supply and discharge of cooling water are not required; useful heat reuse depends on the system design and site conditions.
How do natural gas and LPG differ?+
Appropriate supply systems and steam generators are selected for mains gas and for LPG, a propane-butane mixture from a storage tank. Consumption figures for different fuels are calculated separately.
Can a specialist visit the site?+
Commissioning and support are primarily provided remotely. If needed and if the team is available, a specialist visit is arranged separately, with a separate fee, schedule and scope of work.
